De-Novo Clinic is several floors up, so a flat board would face straight out and people on the road would only see it at a steep angle. We built its backlit boards deeper at the top than at the bottom: fixed straight on the wall, with the face leaning down towards the street.
6 photos · tap any photo to see it full size · real job photos, only light and colour corrected
The clinic sits high on a tall building. A board fixed flat on the wall faces straight out, so from the road below it is hard to read. Tilting a whole board outwards on a high wall is not safe: the more it leans out, the greater the risk.
We kept the board fixed straight on the wall and changed its shape instead: the box is deeper at the top and narrows towards the bottom, so its face leans down towards the road.
Each board is a backlit box, 4 ft wide and 5 ft high: UV-printed flex stretched on a metal frame, with LEDs inside so the name and logo glow at night.

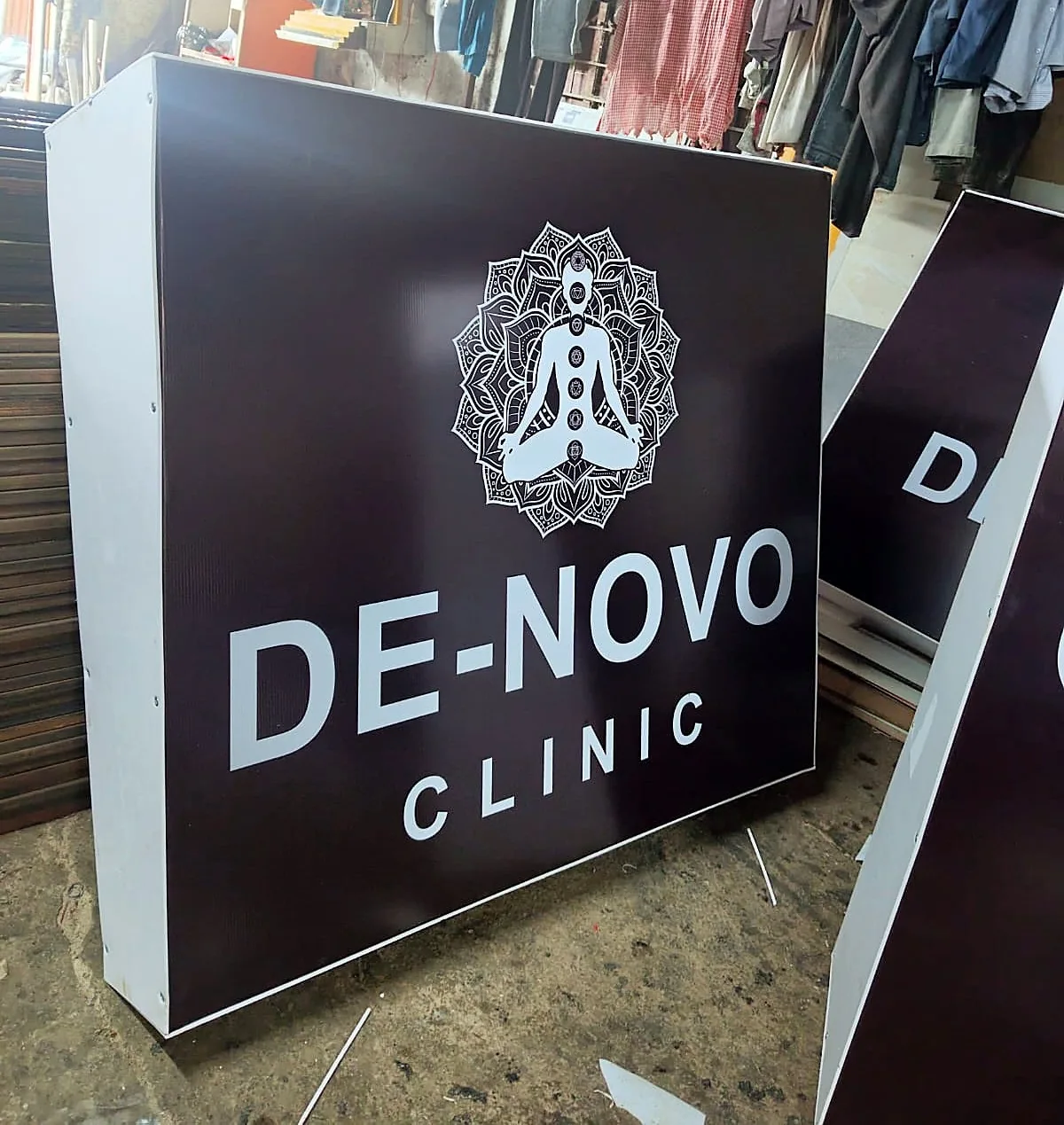

Both boards were built and checked in our workshop before they went up.

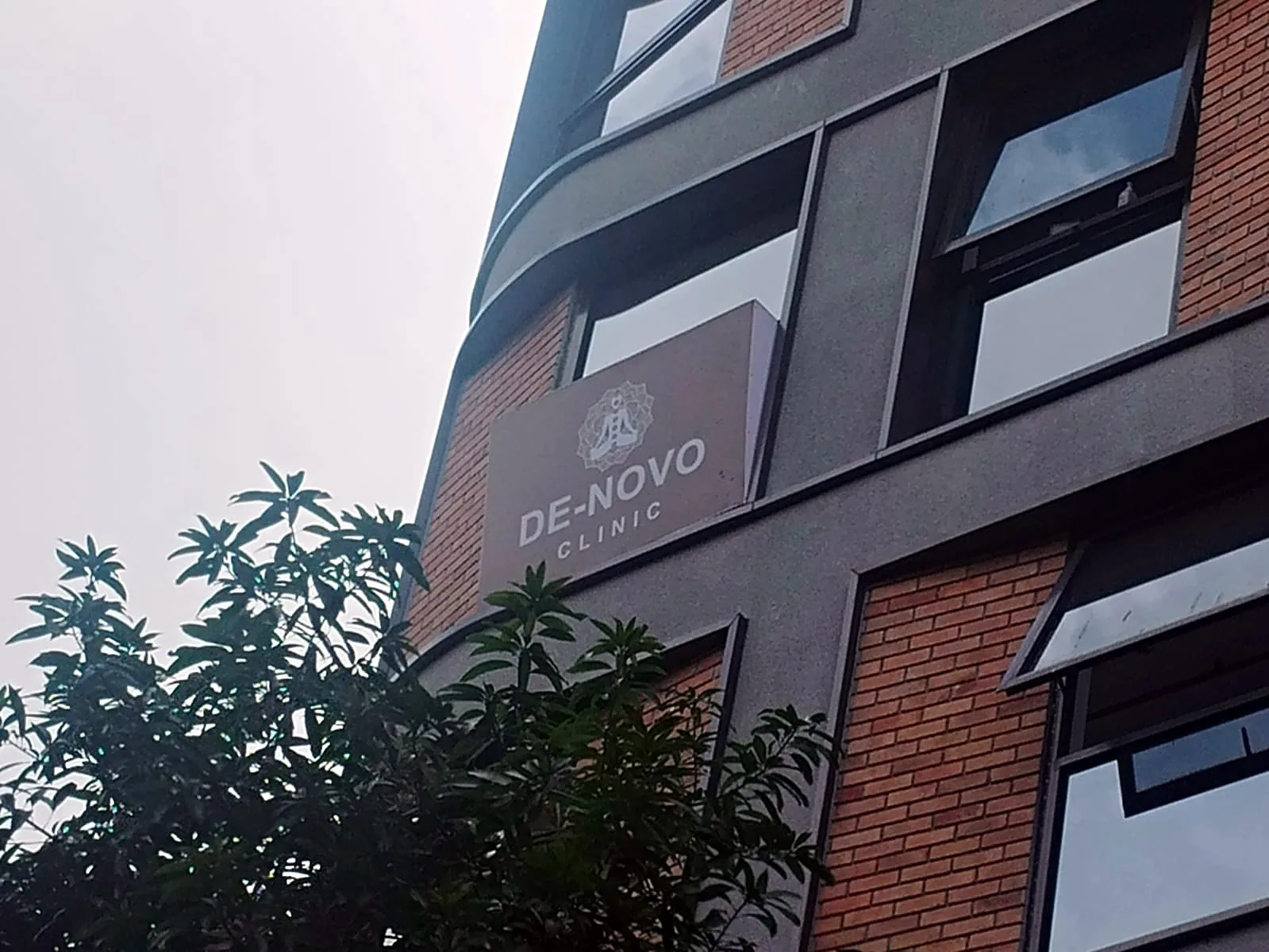

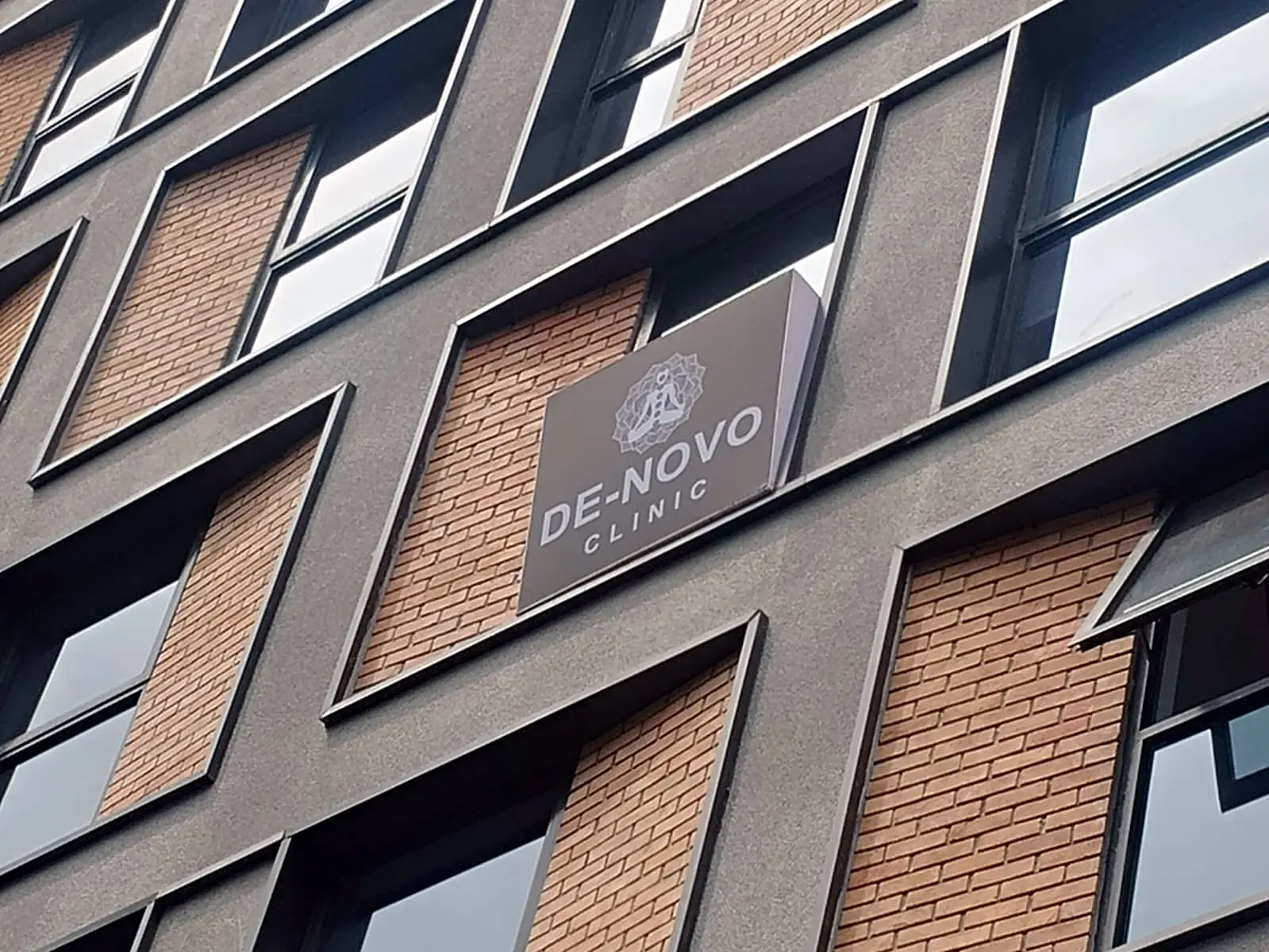

The client liked the idea so much that he ordered two, the same size and design: one at the corner of the building and one on its front. Our team fixed both at height.
This was our second job for the clinic: inside, we had already made the reception name in gold acrylic letters and a wellness light box (last three photos).
The price this client paid, at the time of the job. Every job is different: sizes, materials, site work and today’s rates change the price. See today’s rates or ask us for a quote.
