For V3 Tyres, a Vijay Group tyre showroom in Wanowrie, Pune, we made a black pylon that stands at the showroom gate: the tyre logo lit on top, and a lit red strip for every service inside.
7 photos · tap any photo to see it full size · real job photos, only light and colour corrected
A tyre showroom sells far more than tyres. V3 Tyres wanted people passing on the road, by day and at night, to see everything done inside: 3D alignment, wheel balancing, nitrogen, alloy wheels, batteries and accessories.
It started with the client’s sketch on paper and a photo of the site. We sent three designs, then round after round of changes: it took more than a month before the final design was approved.

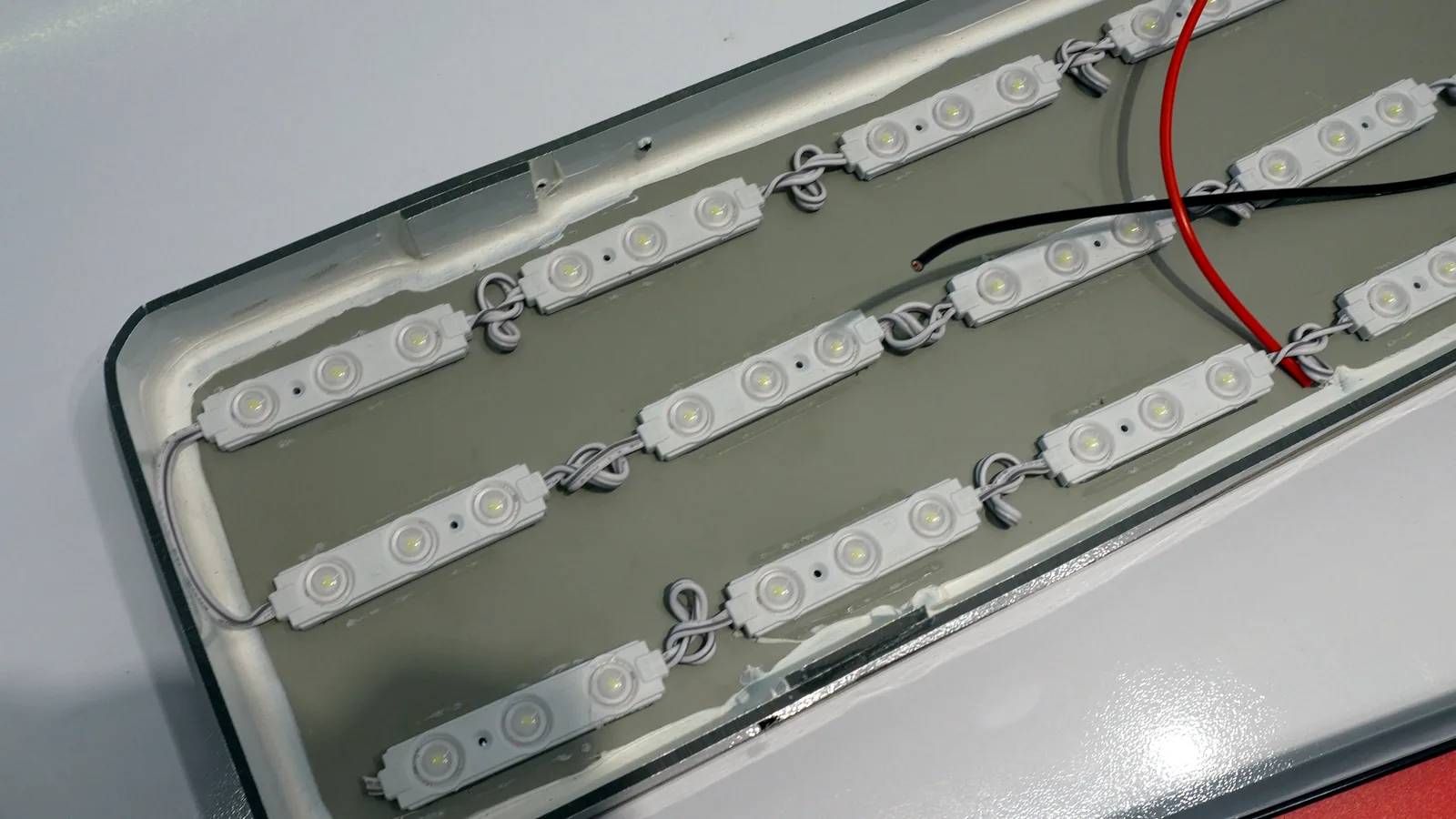

The pylon is about 9 ft 1 in tall and 3 ft wide: a black body about 8 ft tall with the tyre logo rising above it. The logo is laser-cut acrylic with LEDs inside. The V3 Tyres name and the six service strips are lit too, each strip a hollow acrylic box with a red printed face and LED modules inside.
Every lit part was switched on and checked in our office before it went on the pylon’s steel frame, which stands on a concrete footing at the showroom gate.

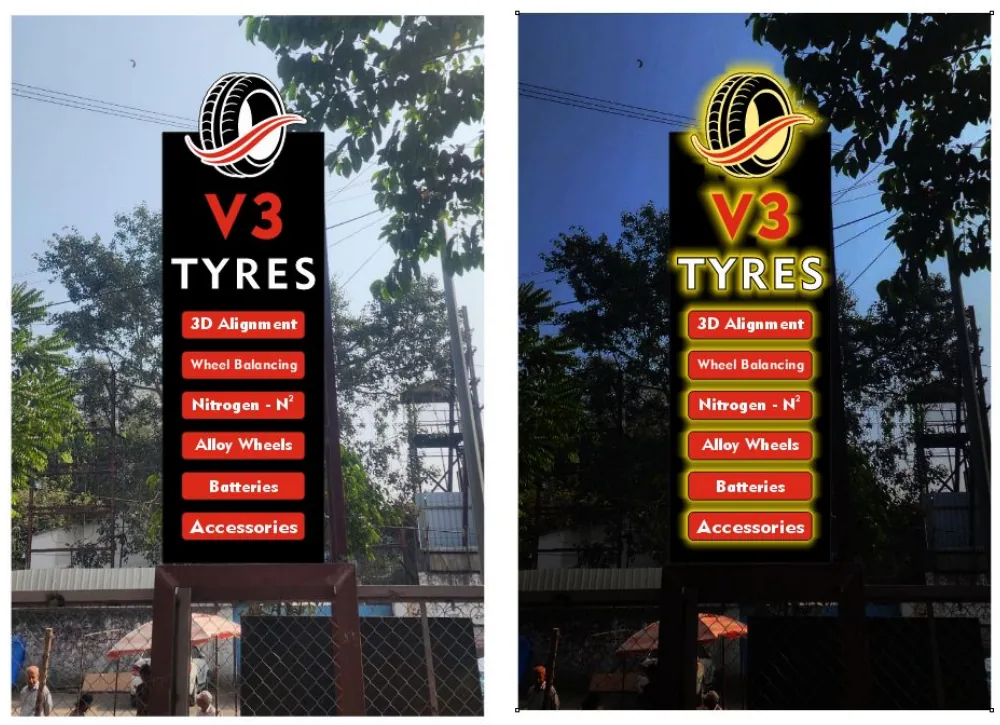

Before anything was made, our proposal showed the layout, the dimensions, the materials and day and night views of the pylon on a photo of the site, so the client could see it standing there first. Once a design is final, making and installing a pylon typically takes a week to 10 days.
The video loads only when you tap play, so the page stays fast.
Every job like this is quoted on its own size, materials and site. See today’s rates or ask us for a quote.
